Quanser 2DOF Robot Arm

Quanser 2DOF Robot Arm

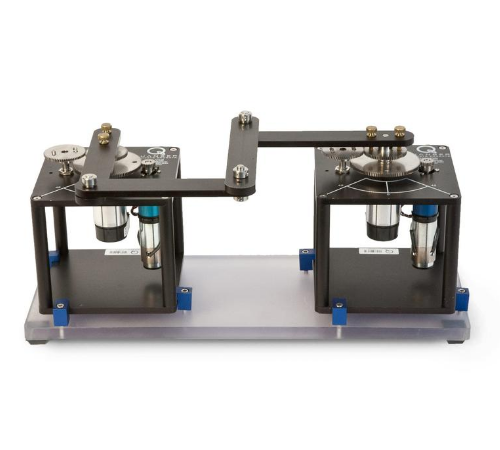

Two Servo Motor Bases connected with 4 connected beams forming an arm with 2 degrees of freedom. Students can learn about the operation of a 2-motor system by analysing features such as kinematics, inverse kinematics, and more. 

The kit includes all elements necessary to quickly start the station: amplifier, controller, Matlab or LabVIEW module as well as educational materials for students.

The set may be further extended with a 2-axis pendulum. 



Basic technical parameters:

  • Base parameters:
    • High quality servo motor (6V, 1A, 6000 RPM)
    • Potentiometer for measuring the position ( ±5V) 
    • Quadrature encoder (4096 pulses / revolution)
    • Gears with the possibility of changing the gear ratio
    • Comprehensive educational materials compatible with NI LabVIEW and Matlab / Simulink included 
    • Open architecture allows students to create customized control algorithms.
  • Module parameters
    • Length of a single connecting beam: 127 mm
    • Single mass of the connecting beam: 0.065 kg
